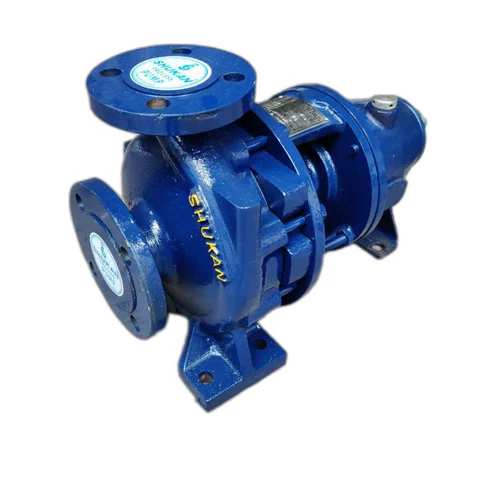

Process Pumps
A centrifugal process pump is a type of pump that uses centrifugal force to transfer fluids. These pumps are used in a wide range of industries, including chemical processing, oil and gas, water treatment, and power generation.
Centrifugal process pumps work by converting mechanical energy into fluid energy using a rotating impeller. The impeller creates a flow of fluid by centrifugal force and then directs it to the pump's discharge port. As the impeller rotates, it creates a low-pressure area that draws fluid into the pump's suction port.
Centrifugal process pumps come in different types, including end-suction, split-case, and vertical inline pumps. The type of pump used depends on the application, flow rate, and head requirements.
One advantage of centrifugal process pumps is their ability to handle high flow rates at relatively low pressures. They are also easy to install and require minimal maintenance. However, they may not be suitable for applications that require high-pressure pumping or handling of abrasive fluids.
Centrifugal process pumps are typically made from materials such as stainless steel, cast iron, or exotic alloys. The choice of material depends on the type of fluid being pumped and its corrosive properties.
Overall, centrifugal process pumps are widely used in various industries due to their reliability, ease of use, and low maintenance requirements. They are an essential component of many industrial processes, from transferring chemicals and petroleum products to circulating cooling water in power plants.
Operating range
Capacity-Q- : Up to 1100 M3/hr
Head : Up to 150 mlc
Pump Size – DN : 25 mm To 300 mm
Temperature : Up to 350.C
Speed – N - : 960/1450/2900 RPM at 50 Hz
1150/1750/3500 RPM at 60 Hz
Application
• Handling pulp stock up to 7% consistency in Pulp & Paper industries.
• Handling Sugar Juice, Bagasse Slurries, Effluent, Water Thin & Thick Sludge in Sugar industries.
• All liquor applications in Pulp & Paper industries.
• Palm oil mills and Refineries, Food industries.
• Waste water treatment plant, Starch industries.
• Salt, Rubber, General industrial services etc.....
• Chemical Process Industries, Fertilizer Plants
• Bulk Drugs and Pharmaceutical
• Heating and Air Conditioning Plants
• Sugar Plants
• Hot & Chill Water Supply/Chiller plant
• Cement & Slurry
• Agriculture, Textile
• Jet Dyeing, Soft Flow Dying
• Organic and Inorganic Liquids Refineries
• Dyes & Intermediates
• Effluent Treatment Plants/MEE Plant
• Cooling Tower & Fire Fighting
• Power, Steel
• Volatile Liquids
• Oil Extraction and Waste
Materials
• Graded Cast Iron • Carbon Steel(WCB)
• Alloy Steel • CF8(SS 304)
• CF8M(SS 316) • CF3M(SS 316 L)
• CD4MCU • Nickel & Ni-Alloys
• Alloy 20 • Ni-Resist
• 2-1 nicl • R55
• Super Duplex Stainless Steel • Duplex Stainless Steel
• Bronze • Hastelloy-B/C
Features
• Single stage Closed & semi open impeller
• Casing wear plate for protect the volute casing.
• Back pull out design
• Conform to ISO 2858 dimensions
• High efficiency hydraulic design
• Heavy duty shaft, sleeve and bearings
• Low NPSH
• Single & Double Mechanical Seal Fitted
• Noise and maintenance free
• Steady head & capacity
• One roller bearing on pump end, two angular contact
ball bearing with oil lubricated
• Several flange drilling options according to valid
Standards.
• Suitable with V-belt drive or direct coupled with a motor.
