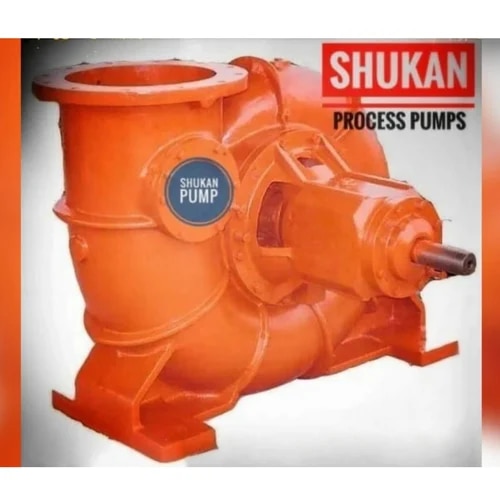

Mixed Flow Process Pump

Effluent Treatment Plant, Sea Water, De-Watering Application

Operating range

Capacity-Q- : Up to 7000 M3/hr

Head-up to : Up to 30 mlc

Pump Size – DN : Up to 650 mm

Application

• SMF Pumps Are especially Used Foe pumping of Large Quantities of liquid with Impurities against low & medium Head

• The Field Of Application Of these Pump Include water work municipalities Covering Pumping of Drainage water & supplying water from settings tanks

• In Irrigation & agriculture for lift irrigation, in industries for circulation for Hot & Cold water , air conditional plants, power station, Text tile mils

• Handling Salt Slurry, Brine Circulation

• Effluent, Water Thin & Thick Sludge in Sugar industries.

• Waste water treatment plant, Municipality Water Plants

Materials

• Graded Cast Iron • Hastelloy-B/C, Hi- Chrome

• Alloy Steel • CF8(SS 304)

• CF8M(SS 316) • CF3M(SS 316 L)

• CD4MCU • Duplex Stainless Steel

• Alloy 20 • Super Duplex Stainless Steel

Features

• These are end suction single stage pump, Horizontal shaft, Volute type pumps.

• Suitable for Coupling with Electric Motors, I.C. Engines either directly or through Belt Drive/Gear box.
