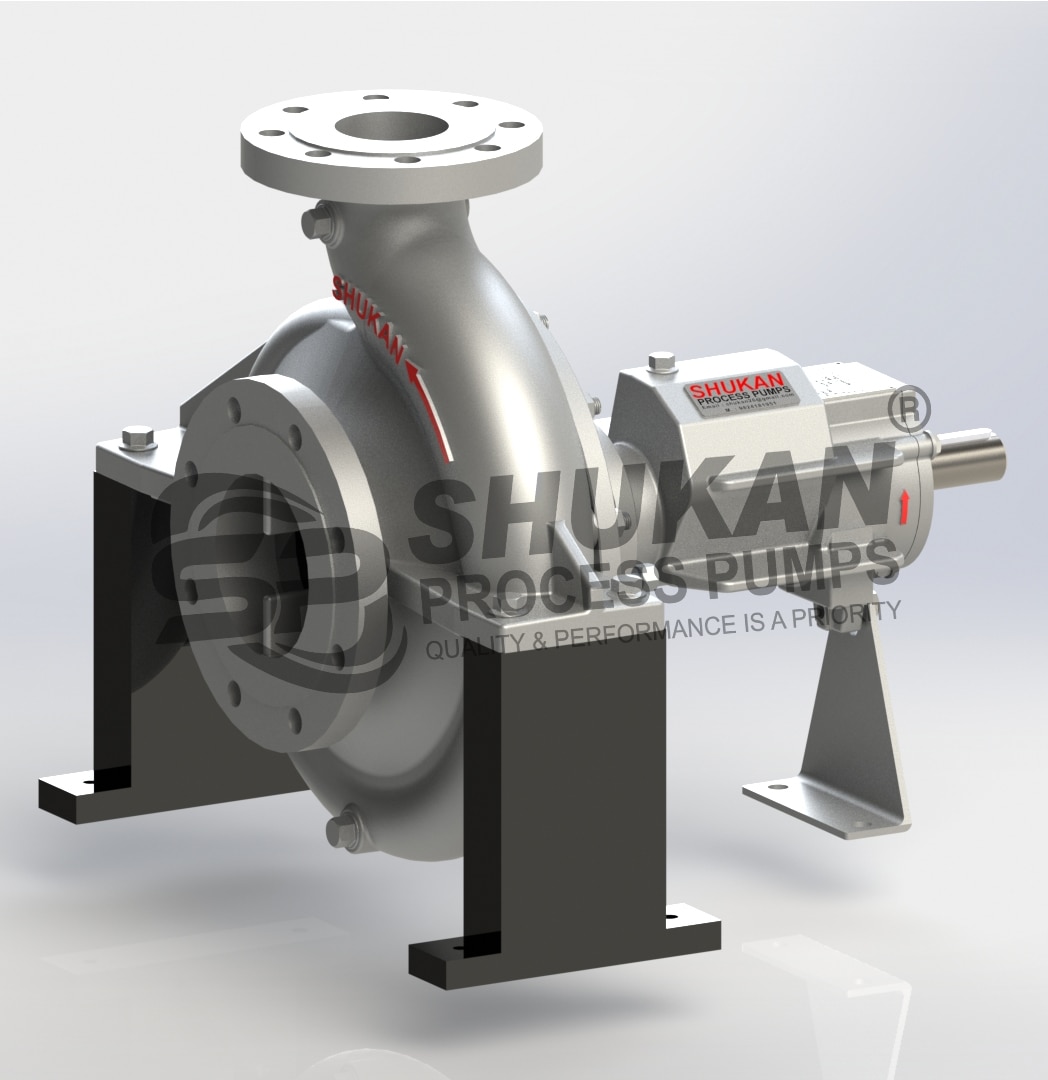

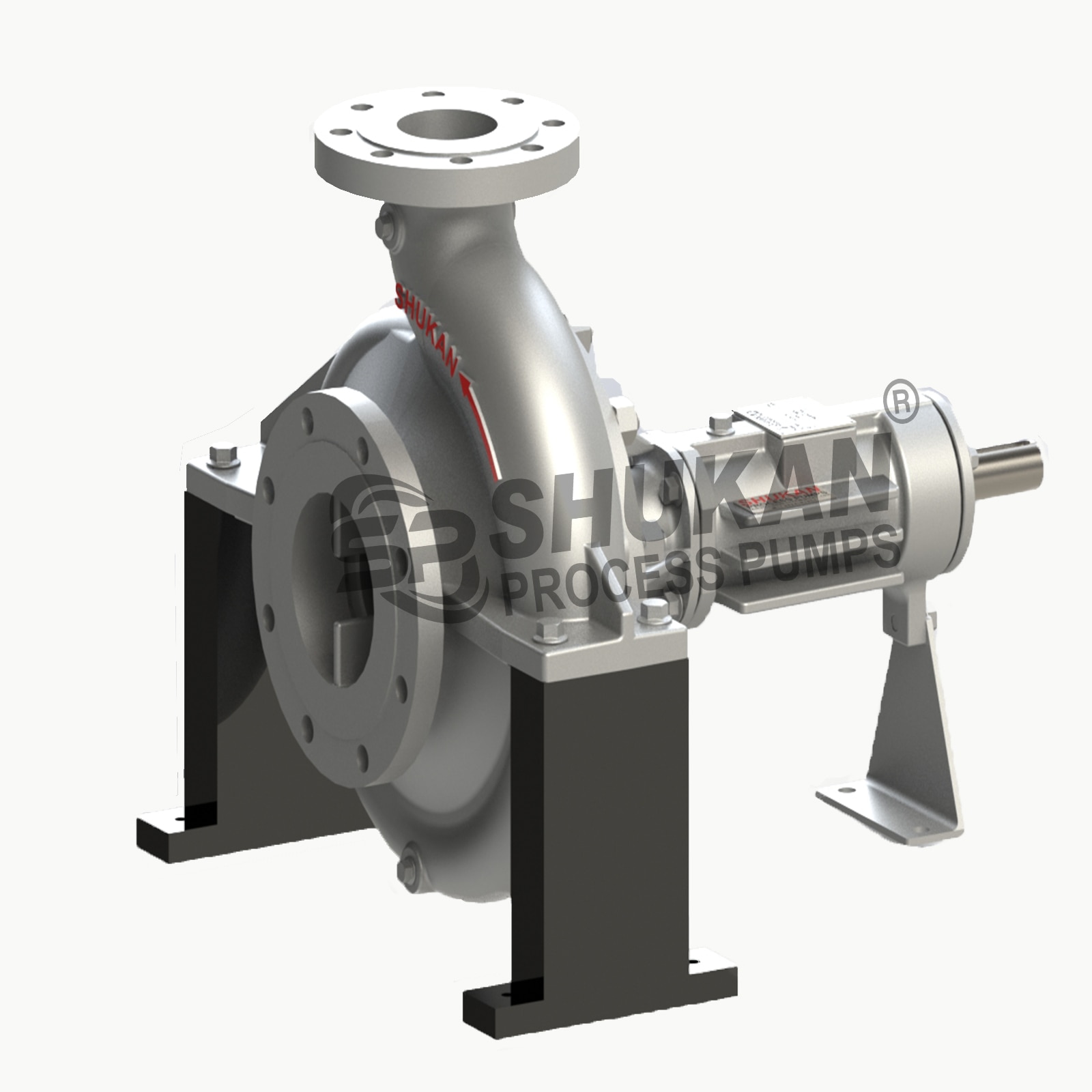

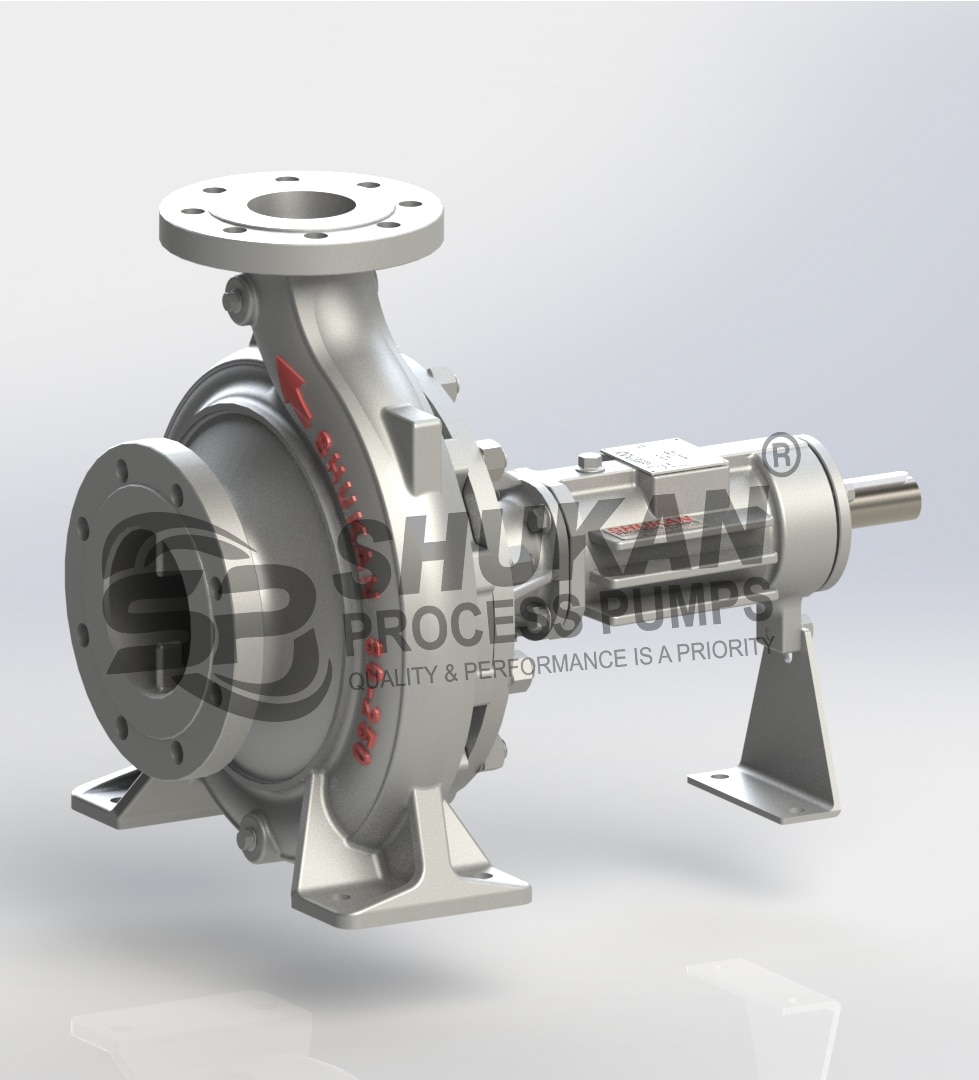

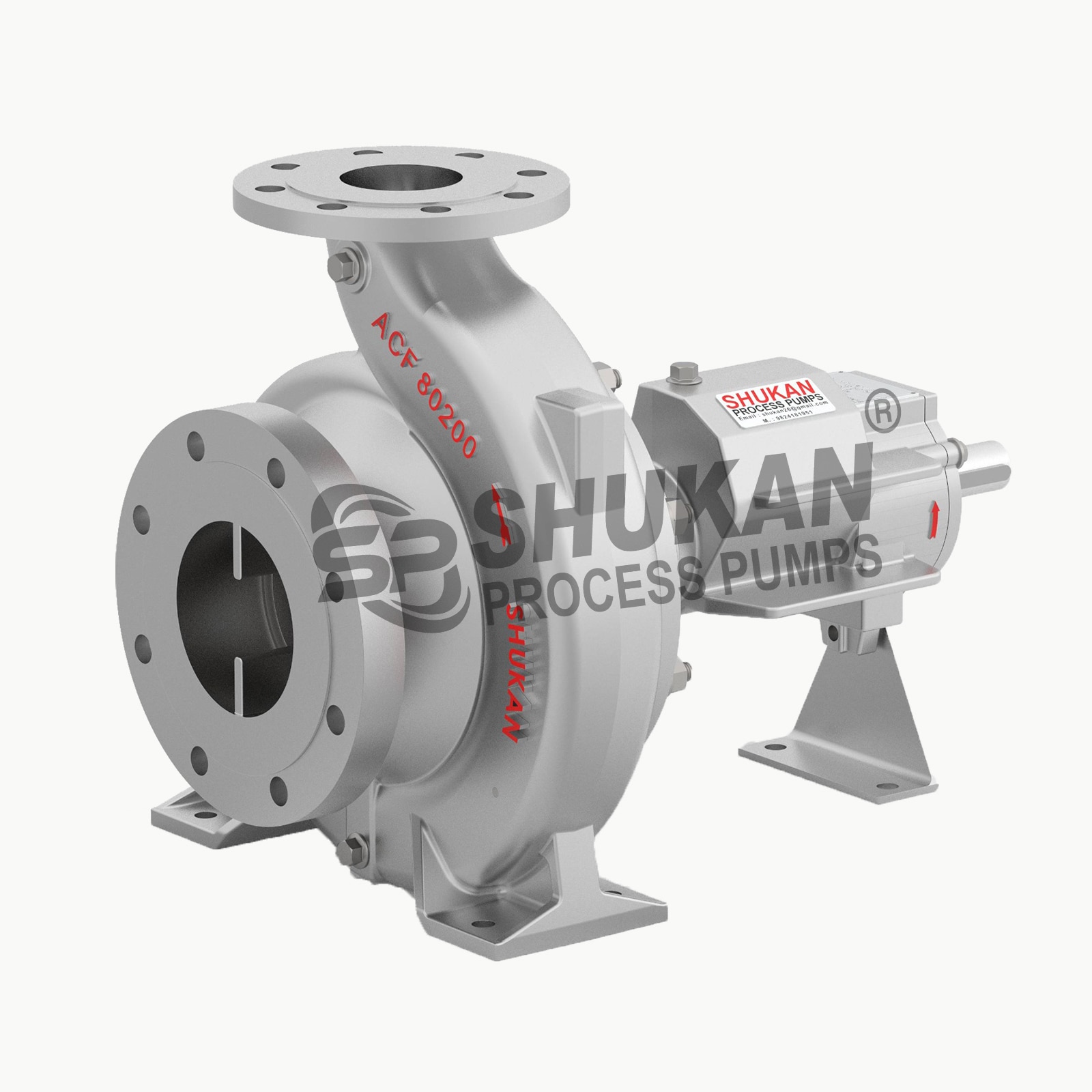

🌡️ Air Cooled Thermic Fluid Process Pump | High-Temperature Hot Oil Transfer Pump
The Next Generation of High-Temperature Fluid Circulation by Shukan Process Pump
Welcome to the product page for the flagship Air Cooled Thermic Fluid Process Pump from Shukan Engineering. Based on proven technology, this pump is the reliable, energy-efficient heart of your thermal fluid system.
Under our trusted brand, Shukan Process Pump, we deliver a superior solution for the safe and continuous transfer in Heat Transfer Systems (according to DIN 4754, VDI 3033) and Hot Water Circulation (according to DIN 4752). The pump is designed for fluid temperatures ranging from -30°Cto 350°C.
Maximum Operating Reliability and Robust Design
The Shukan Process Pump is engineered for maximum operational reliability and easy servicing. Key design features include:
Robust Casing : Features a sturdy discharge cover designed for high stiffness.
Reduced Wear : Incorporates an optimized heat barrier to ensure little wear.
Advanced Bearings : Uses an anti-seize carbon plain bearing lubricated by the fluid handled. Also features a reinforced deep-groove ball bearing with a special grease fill for a long service life.
Sealing Options : Available with a design variant featuring a double-acting mechanical seal in a tandem arrangement.
Optimized Venting : A highly effective venting contour ensures optimum venting.
🔥 Key Features & Technical Specifications (ACC / ACF / ACFE / ACCE Series)
⚙️ Energy Efficiency & Service Highlights
| Feature | Benefit to Your Operation |
| High Energy Efficiency | Optimized hydraulic system yields high efficiency. |
| Variable Speed | Suitable for variable-speed operation. |
| Easy Servicing | Features replaceable wear rings and straightforward dismantling of the bearing bracket. |
| Impeller Trimmed | The impeller is trimmed to match the specified duty point. |
📊 Technical Specifications (ACC / ACF / ACFE / ACCE Series)
| Parameter | Specification Range | Note |
| Pump Size | 25 to 150 mm | Connection diameter range. |
| Max. Capacity (Q) | Up to 625 / 754 m³/hr | Values for 50 Hz/60 Hz operation, respectively. |
| Max. Head (H) | Up to 102 / 100 m | Values for 50 Hz/60 Hz operation, respectively. |
| Fluid Temperature | -30 to 350 °C. | Continuous and safe operation range. |
| Max. Operating Pressure | 16 bar | Maximum system pressure rating. |
🏭 Industry Applications
The Shukan Process Pump Air Cooled Thermic Fluid Pump (ACC / ACF / ACFE / ACCE Series) is a robust and essential component for managing high-temperature fluids across a wide range of industrial sectors. Its reliability and maintenance-friendly design make it ideal for critical heat transfer applications.
Typical applications include:
1. Heat Transfer Systems
- Thermal Oil Circulation: Used extensively in heat transfer systems that comply with standards like DIN 4754 and VDI 3033.
- Industrial Heating: Pumping hot oil through heating circuits in processes like polymerization, distillation, and drying.
2. Hot Water Circulation
- Steam Generation Circuits: Used in industrial settings where closed-loop high-pressure, high-temperature water is circulated.
- High-Temperature Water Systems: Essential for large-scale hot water circulation systems, often specified under DIN 4752.
3. Key Manufacturing Industries
The ACC / ACF / ACFE / ACCE Series is vital in any process requiring precise and continuous heat input or extraction:
Chemical and Petrochemical: Handling solvents and reactive fluids at elevated temperatures.
Textiles: Heating processes like dyeing and finishing.
Pharmaceuticals: Maintaining precise temperatures for synthesis and purification.
- Food and Beverage: Continuous heating in large-scale cooking or sterilization processes.
✅ Summary and Your Success with Shukan Engineering
Choosing the Shukan Process Pump means selecting maximum operating reliability and high energy efficiency for your plant. Our commitment is to provide robust, long-lasting equipment built for demanding conditions.
Your Success is Our Technology.
By combining an optimized hydraulic system with a sturdy, easy-to-service design, Shukan Engineering ensures your high-temperature fluid transfer operations are safe, continuous, and highly cost-effective.
📞 Get Started Today
Do you require a pump with a capacity up to 625 / 754 m³/hr and the ability to handle temperatures up to 350 °C.
Contact Shukan Engineering today to discuss your specific thermal fluid requirements and receive a customized quote for the Air Cooled Thermic Fluid Process Pump (ACC / ACF / ACFE / ACCE Series).
Call to Action: Request a Technical Consultation or Quote.
