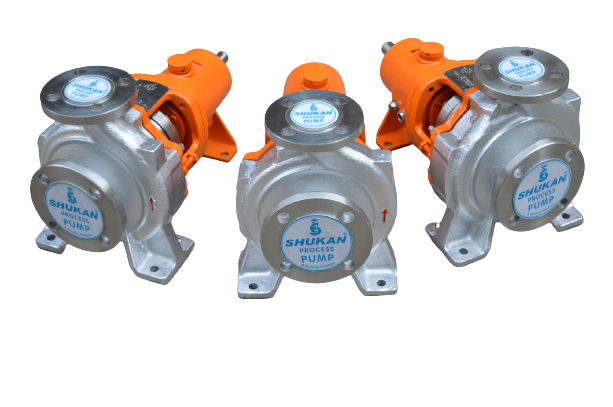

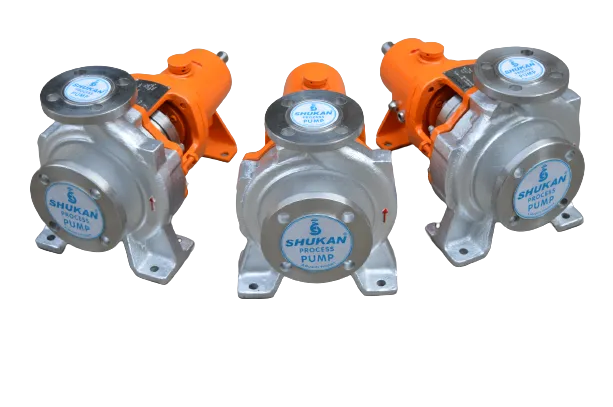

Filter Press Process Pump

Application

• Filter press feeding.

• ETP, STP & Waste Water treatment plant.

• EVA-operator, Scrubber application.

• Slurry transfer.

• Dyes & Intermediates, Steel Rolling mills.

• Pulp & Paper, Sugar, Salt, Starch industries.

• Zink & Copper plant.

• Ceramic, General industrial services etc.....

Operating range

Capacity-Q- : Up to 200 M3/hr

Head-up to : Up to 100 mtr.

Pump Size – DN : 40 to 100 mm

Speed – N - : Up to 3500 rpm

Temperature : Up to 140OC

Pressure : Up to 10 kg/cm2

Materials

• Graded Cast Iron • Hastelloy-B/C, Hi- Chrome

• Alloy Steel • CF8(SS 304)

• CF8M(SS 316) • CF3M(SS 316 L)

• CD4MCU • Duplex Stainless Steel

• Alloy 20 • Super Duplex Stainless Steel

Features

• Single stage semi open impeller.

• Special design for filter press application.

• Reduce gland leakage.

• Heavy duty shaft, sleeve & bearings.

• Noise & maintenance free.

• Long life due to replaceable wearing parts.

• High efficiency low power consumption.

• Grease / oil lubricant bearings.

• Only positive (+V) suction head.

• Suitable with V-belt drive or direct coupled with a motor.
